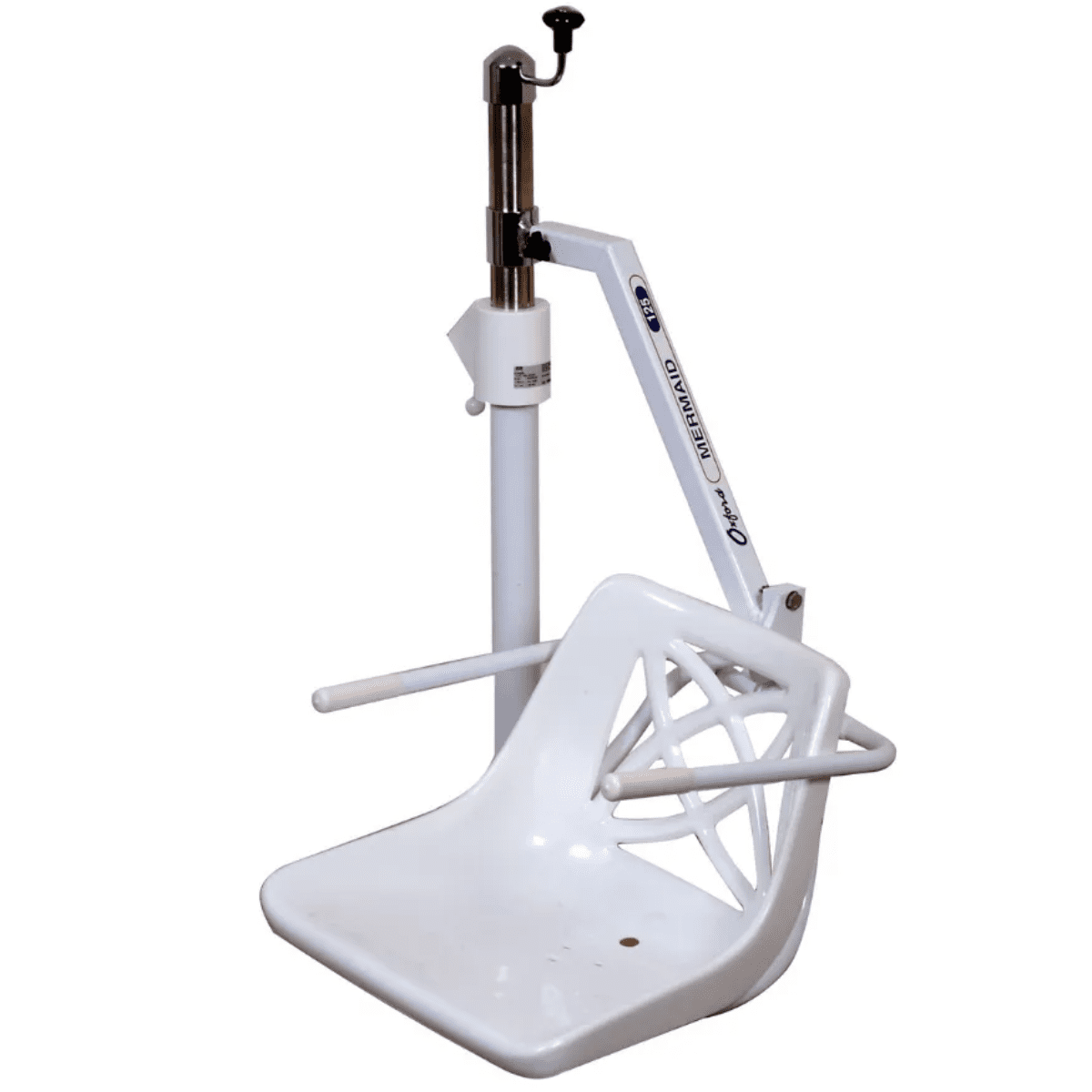

The Aquamaster fixed floor hoists feature an easy-to-clean white nylon coating. Carers can find the ideal lifting position easily as the seat rotates 360 degrees, locking every 90 degrees to ensure a safe transfer.
It is easy for caregivers to lower patients into the bath by using the winding handle. The hoist can be placed either at the side or end of the bath, depending on accessibility and preferences.
The Aquamaster bath hoist is available in both manual and electric versions. For manual versions, an electric conversion kit is available.
1 year warranty
N6212
- Weight Capacity 130kg
- Wooden or concrete floor fixings
- Side or end fit configuration
- Lap Belt
- Detachable battery pack (electric version)
- LCD battery level indicator (electric version)
- Emergency lift and lower functions (electric version)
- Optional safety harness for added security
Safe working load
130kg/20st/287lbs
Maximum height to base of seat
740mm
Minimum height to base of seat
140mm
Maximum seat travel
485mm
Maximum seat width
450mm
Maximum width between arms
395mm
Maximum seat depth
410mm
Centre of seat to centre of mast
430mm
Maximum seat turning radius
850mm
Maximum clearance from mast (to allow for seat rotation)
1000mm
Total weight (manual)
29kg
Total weight (electric)
37kg
