ZENITH Support Arms

ZENITH Support Arms

Our newest range of support arms for use in and around the bathroom, and designed and constructed to meet with your highest expectations.

Built from aluminium and stainless steel for exceptional longevity with non-slip touchpoints, the Zenith range is attractive and comfortable to use.

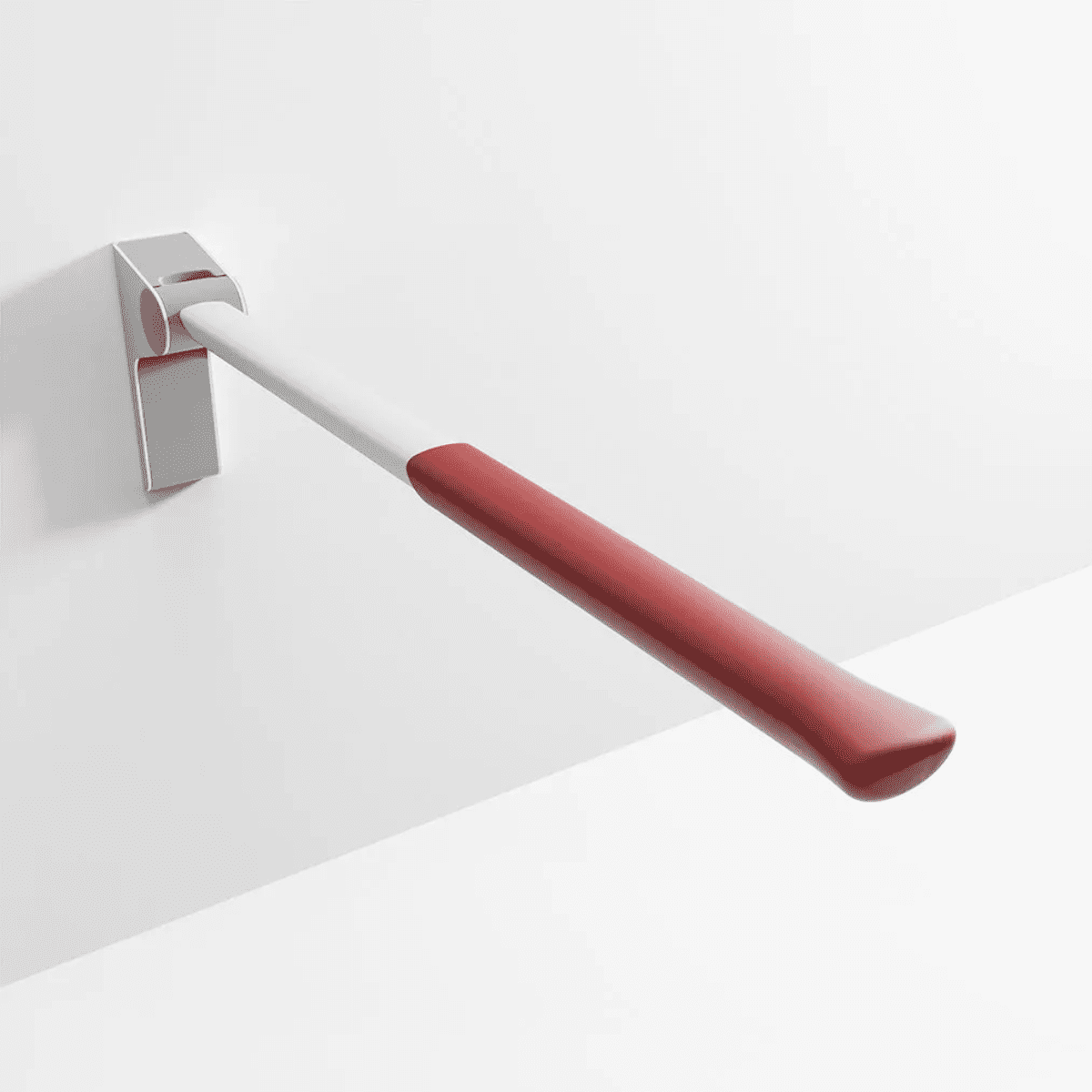

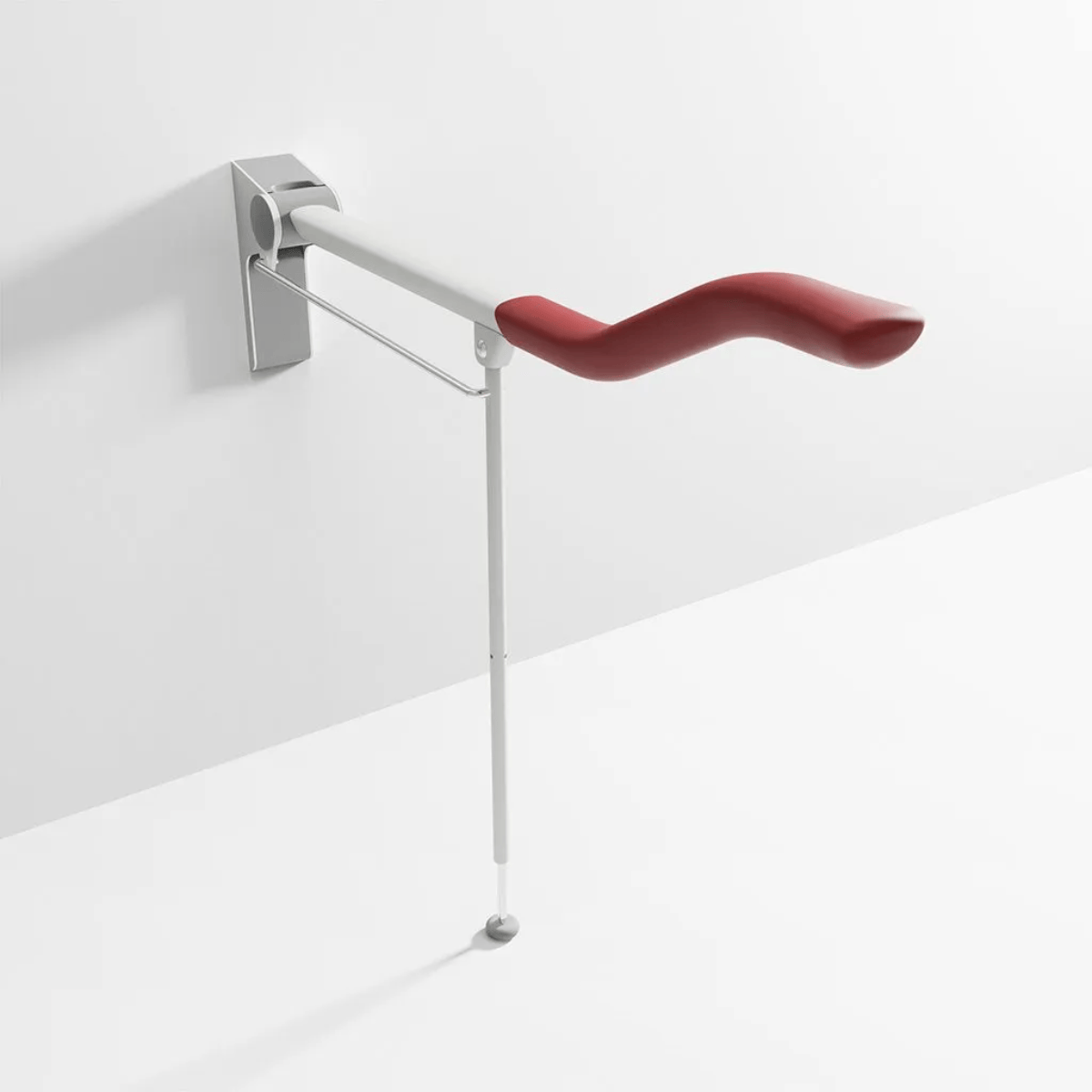

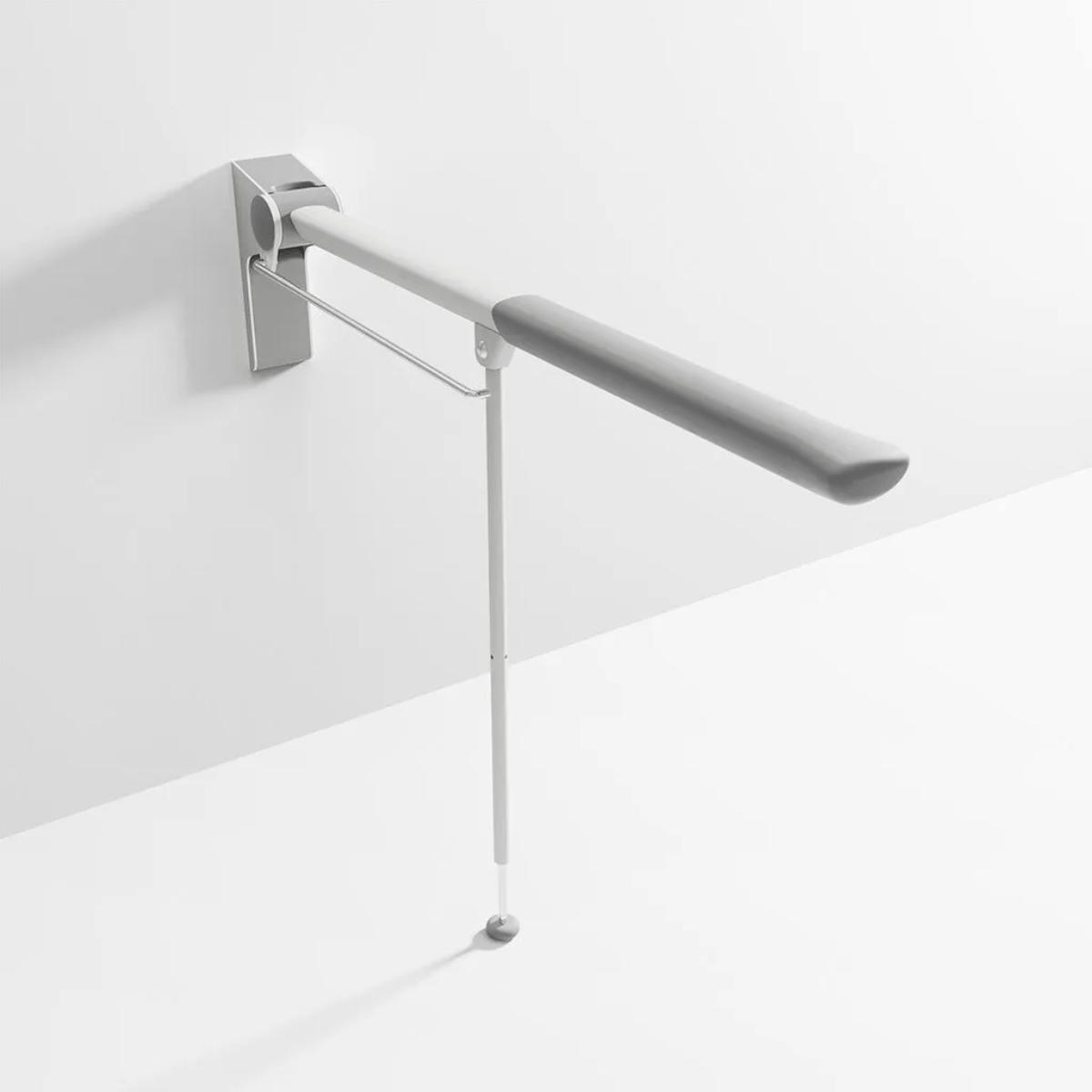

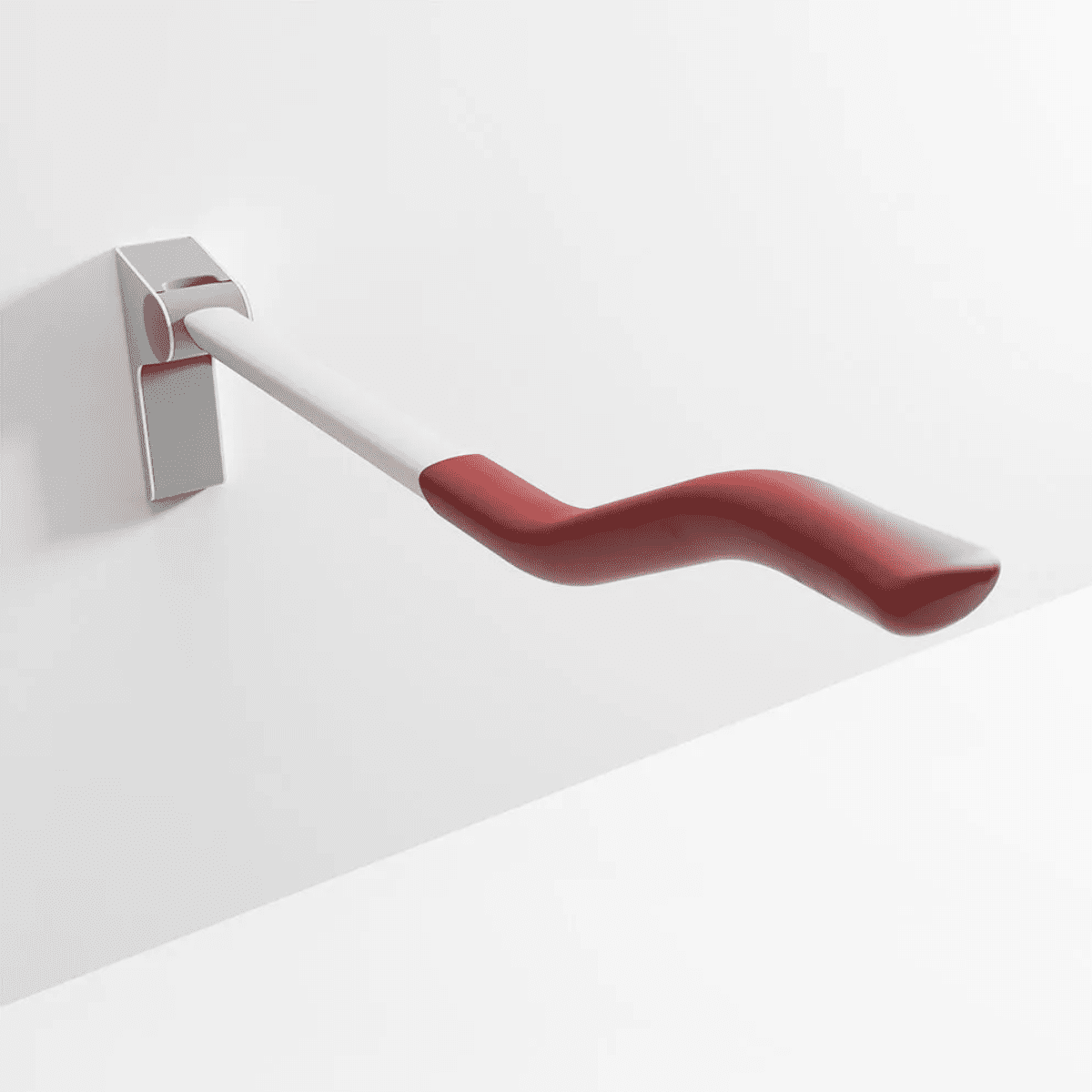

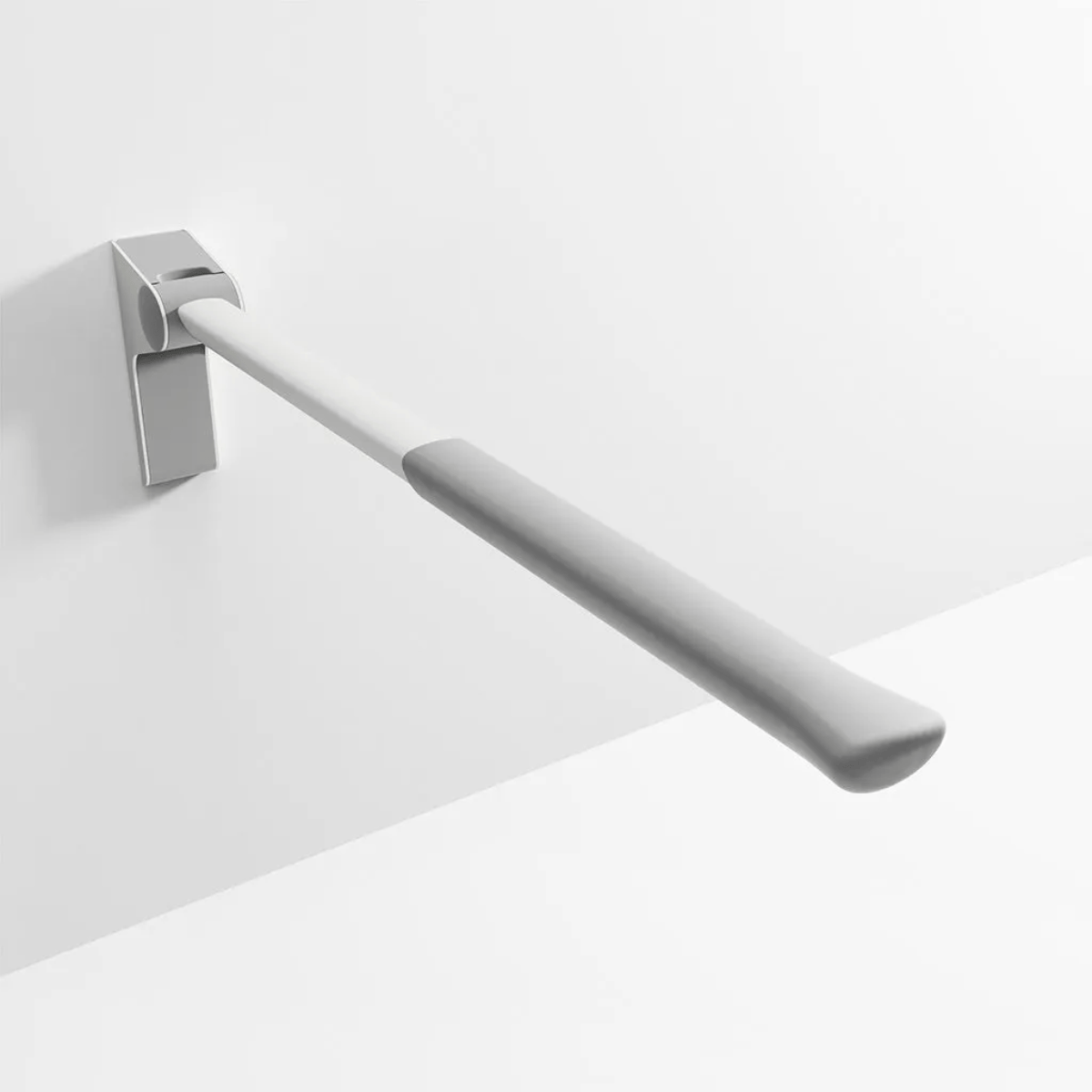

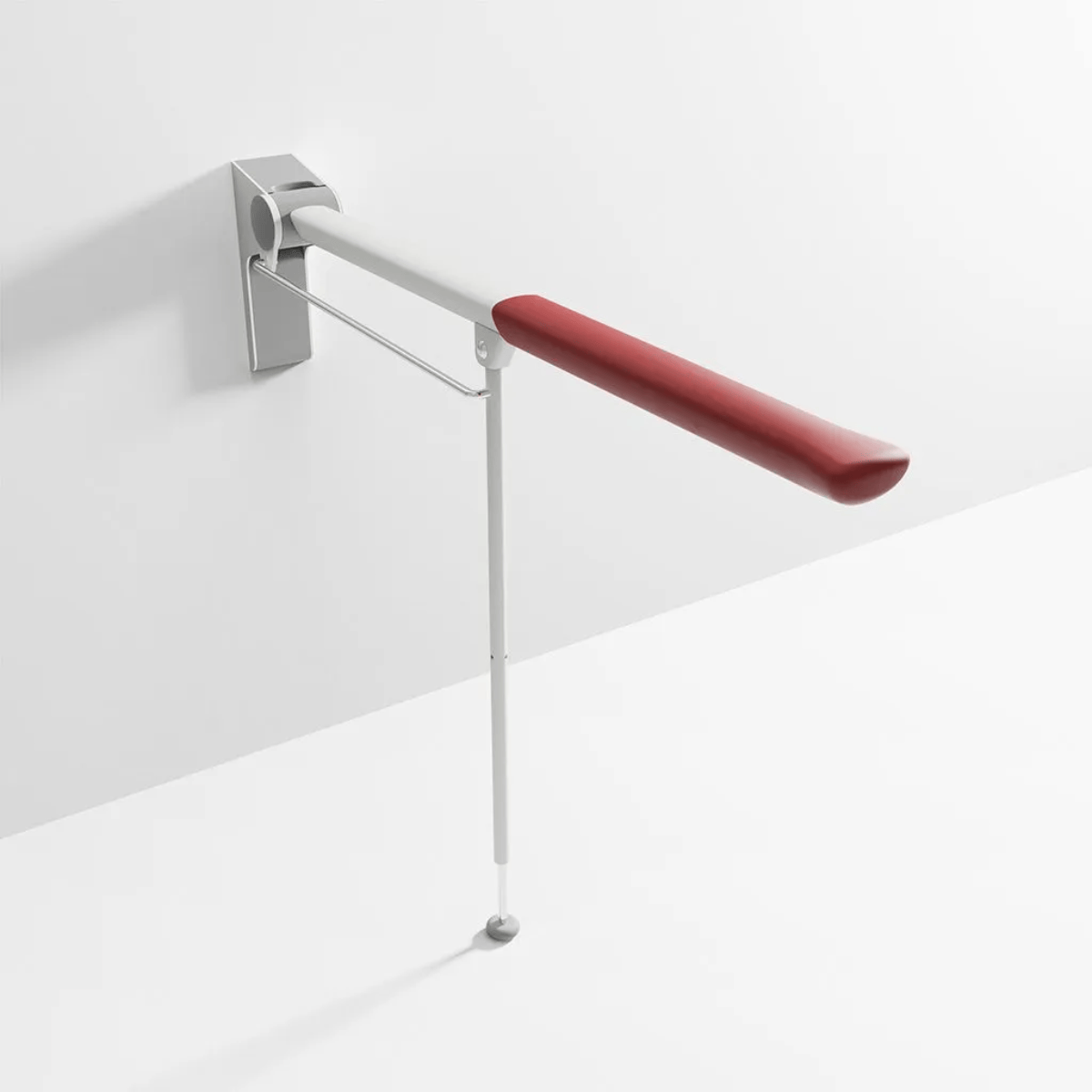

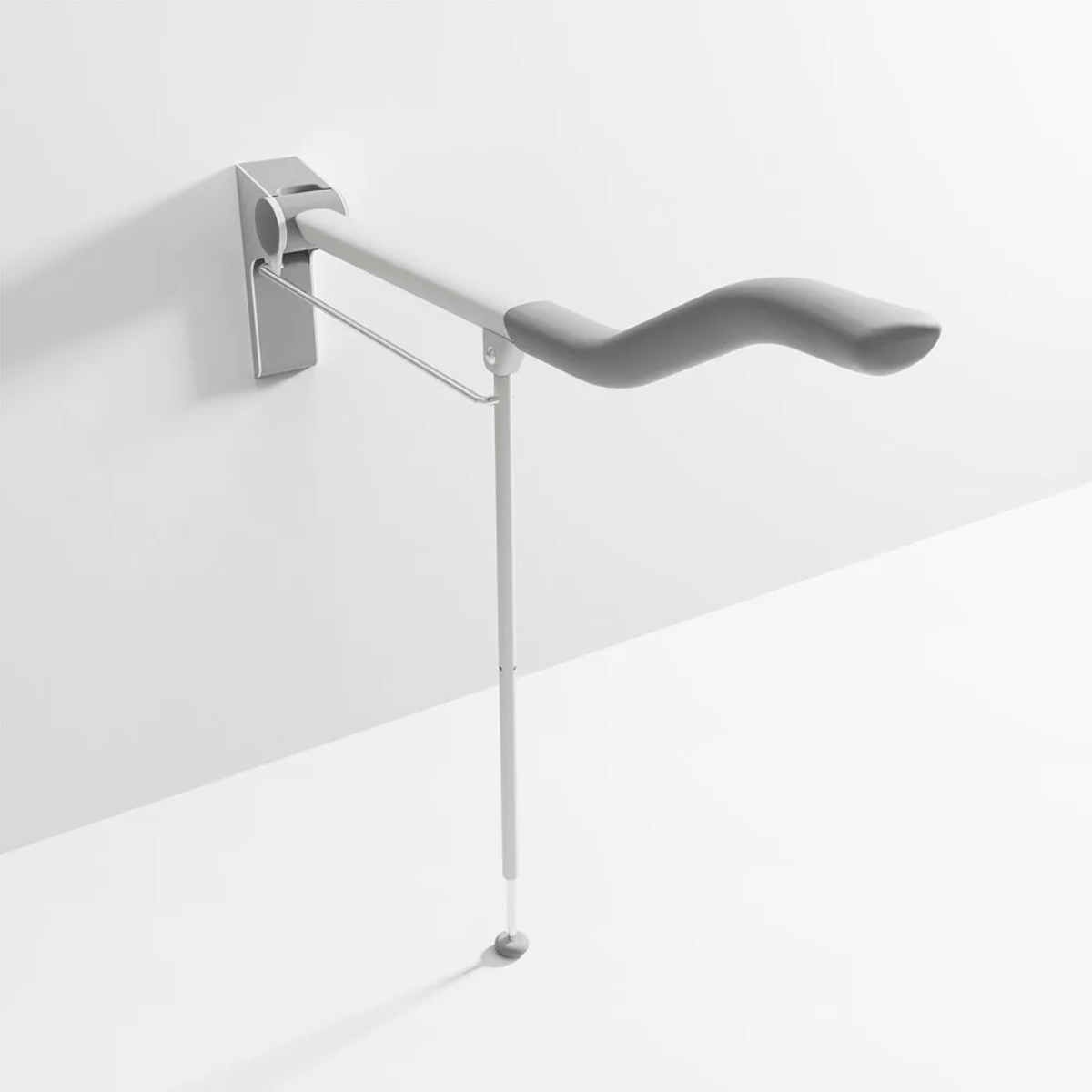

Available in Straight or Wave designs, in a choice of lengths and colours, and with the option of a sturdy support leg.

Adding the support leg increases the safe working load to 330kg, and is especially useful when the fixing substrate is anything but solid masonry. The support leg has a screw-out adjustment to ensure easy set-up.

The rails are shipped complete with fixings, and come with a template for drilling the fixing points.



Technical Specifications

Max user weight

250kg / 330kg with a support leg

Sideways pull out force

150kg

Construction

Aluminium with antimicrobial paint / Stainless steel with antimicrobial paint / TPU with antimicrobial additive

Standard colours

Grey (RAL 7037) / Red (RAL 3003)

Manufacturing standard

ISO 17966:2016

LRF (light Reflectance Values)

Grey : 23 / Red : 9
